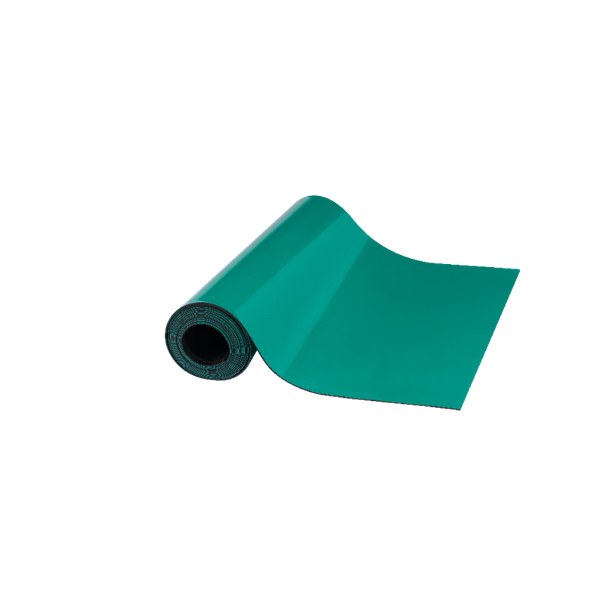

3 Layer Premium ESD Mat — Factory Direct Since 1998
Heavy-duty 3-layer (2.5–3mm). Tensile 15MPa. 400°C self-extinguishing. For high-traffic semiconductor and automotive electronics lines....
- Thickness: 2.5mm / 3.0mm
- Surface Resistance: 10⁶–10⁹ Ω
- Color: Green / Blue / Grey
- Standard Sizes: 1.0m×10m, 1.2m×10m, custom
Full Specifications
| Material | NBR + Natural Rubber (60-70%) + conductive scrim |
|---|---|
| Construction | 3-layer (dissipative + conductive scrim + conductive) |
| Tensile Strength | ≥15 MPa (top) / ≥8 MPa (bottom) |
| Elongation | ≥200% (top) / ≥160% (bottom) |
| Operating Temp | -30°C to +300°C |
| Flame Rating | Self-extinguishing (400°C no ignition) |
| Certification | RoHS 3.0, SGS, SJ/T 10694-2022, IEC 61249-2-21 |
| Shelf Life | 2 years (proper storage) |
| Standard Sizes | 1.0m×10m, 1.2m×10m, custom |
| Grounding | 2× copper foils + grounding snap kit |
Why Choose EDAR for 3 Layer Premium ESD Mat
25+ Years Manufacturing
Vertically integrated factory — from rubber compounding to die-cutting. 18,000m² with 30+ production lines.
80-90% Less Than Brands
Factory-direct pricing beats Desco, COBA, RS Pro. FOB Shanghai/Ningbo, bulk discounts available.
RoHS 3.0 + SGS Certified
Independent annual audits by SGS since 2005. Full TDS/MSDS with every order.
Get a Free Quote for 3 Layer Premium ESD Mat
Send your specs today — get a firm quote within 24 hours and a free sample in 7 days. Production lead time: 15–25 working days after PO.
