EU Standard

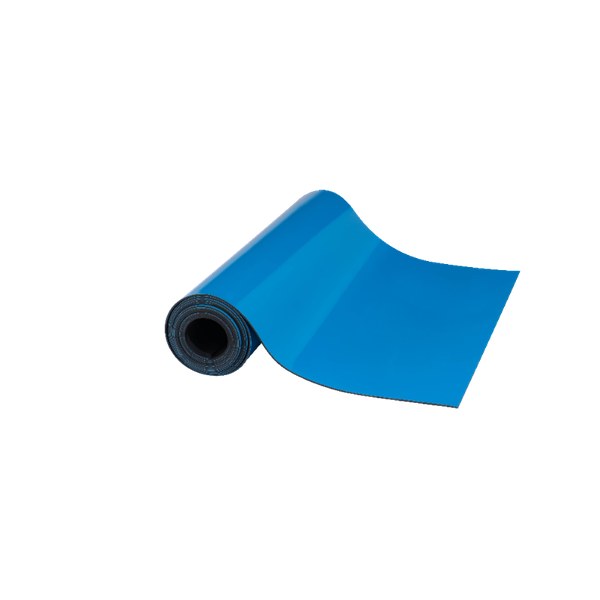

ROHS 2.0 STANDARD ESD MAT — Factory Direct Since 1998
EU-ready ESD mat with full SGS compliance docs. 0 customs risk for European electronics production. Tensile ≥13 MPa....
- Thickness: 2.0mm ± 0.2mm
- Surface Resistance: 10⁶–10⁹ Ω
- Color: Green / Blue / Grey
- Standard Sizes: 1.0m×10m, 1.2m×10m, custom
Full Specifications
| Material | NBR + Natural Rubber (60-70%) |
|---|---|
| Construction | Dual-layer (Dissipative top + Conductive bottom) |
| Tensile Strength | ≥13 MPa (top) / ≥6 MPa (bottom) |
| Elongation | ≥180% (top) / ≥140% (bottom) |
| Operating Temp | -30°C to +300°C |
| Flame Rating | Self-extinguishing (400°C no ignition) |
| Certification | RoHS 2.0 (EU 2011/65/EU), SGS, SJ/T 10694-2022 |
| Shelf Life | 2 years (proper storage) |
| Standard Sizes | 1.0m×10m, 1.2m×10m, custom |
| Grounding | 2× copper foils + grounding snap kit |
Why Choose EDAR for RoHS 2.0 ESD Mat
25+ Years Manufacturing
Vertically integrated factory — from rubber compounding to die-cutting. 18,000m² with 30+ production lines.
80-90% Less Than Brands
Factory-direct pricing beats Desco, COBA, RS Pro. FOB Shanghai/Ningbo, bulk discounts available.
RoHS 3.0 + SGS Certified
Independent annual audits by SGS since 2005. Full TDS/MSDS with every order.
Get a Free Quote for RoHS 2.0 ESD Mat
Send your specs today — get a firm quote within 24 hours and a free sample in 7 days. Production lead time: 15–25 working days after PO.
